The CENTRAL SEMICONDUCTOR CLL4099 Series types are high quality Silicon Zener Diodes designed for low leakage, low current and low noise applications.

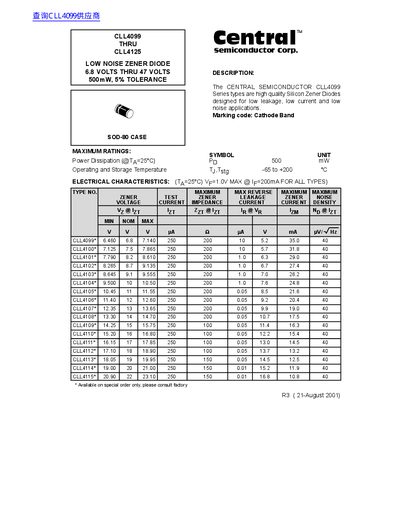

This document provides technical specifications for the Central Semiconductor Corp. CLL4099 Series types, which are high quality Silicon Zener Diodes designed for low leakage, low current, and low noise applications. The product line covers voltage ratings from 6.8 volts through 47 volts with a power dissipation of 500mW.
| Power Dissipation | 500 mw |
|---|---|
| Zener Voltage Range | 6.8 VOLTS THRU 47 VOLTS |
| Tolerance | 5% TOLERANCE |
| Operating Temperature Range | -65 to +200 °C |
| Package Type | SOD-80 CASE |
The maximum power dissipation at a temperature of 25°C is 500 mW.
The device operates and stores within a range of -65 to +200 °C.
