The document describes the features of the CENTRAL SEMICONDUCTOR CMDZ2L4 series silicon low level zener diode, including low operating current, low leakage, and a sharp knee.

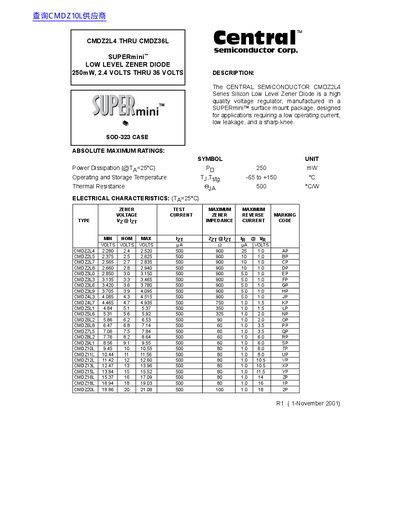

This document is a technical datasheet for the Central Semiconductor Corp. CMDZ Series Silicon Low Level Zener Diode. The devices are manufactured in a SUPERmini surface mount package, specifically the SOD-323 case, designed for applications requiring low operating current and low leakage.
The datasheet provides absolute maximum ratings, electrical characteristics including zener voltage and impedance across various models (from 2.4V to 36V), and mechanical outline dimensions in both inches and millimeters.
| Power Dissipation (@T a=25°C) | 250 mw |
|---|---|
| Operating and Storage Temperature | -65 to +150 °C |
| Thermal Resistance | 500 °c |
| Package Type | SOD-323 CASE |
