This document describes the features and characteristics of the CMSH1 series silicon Schottky rectifiers produced by Central Semiconductor Corp., including low cost, lot-to-lot consistency, high reliability, and special selections. These products are suitable for commercial, industrial, entertainment, computer, and automotive applications.

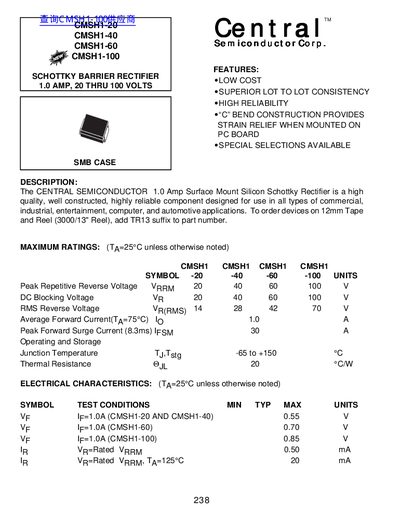

This document is a datasheet for the Central Semiconductor Corp. CMSH1 series of 1.0 Amp Surface Mount Silicon Schottky Rectifiers. The components are designed for use in commercial, industrial, entertainment, computer, and automotive applications.
The datasheet provides maximum ratings including peak repetitive reverse voltage ranging from 20V to 100V, average forward current of 1.0A at 75°C, and operating/storage temperatures from -65°C to +150°C. It also lists typical electrical characteristics such as forward voltage drop and leakage current.
| Average Forward Current (Ta=75°C) | 1.0 A |
|---|---|
| Peak Forward Surge Current (8.3ms) | 30 A |
| Operating and Storage Temperature Range | -65 to +150 °C |
| Thermal Resistance (OIL) | 20 °C/W |
The typical forward voltage drop (VF) at IF=1.0A for the CMSH1-60 model is 0.70 V.
To order devices on 12mm Tape and Reel, add the TR13 suffix to the part number.
