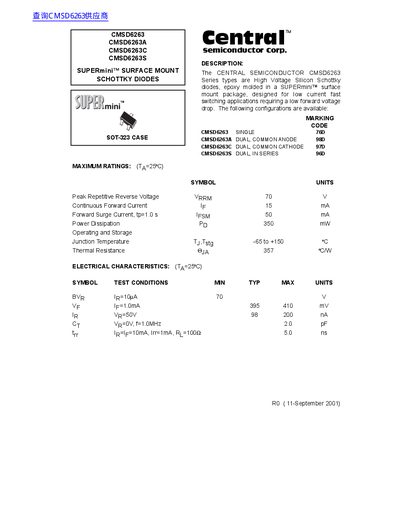

CMSD6263 is a high voltage silicon Schottky diode manufactured by Central Semiconductor Corp., packaged in a SUPERmini™ surface mount package. It is designed for low current fast switching applications requiring a low forward voltage drop.
The Central Semiconductor CMSD6263 Series types are High Voltage Silicon Schottky diodes, epoxy molded in a SUPERmini™ surface mount package. They are designed for low current fast switching applications requiring a low forward voltage drop.
Available configurations include the single diode (CMSD6263), dual common anode (CMSD6263A), dual common cathode (CMSD6263C), and dual in series (CMSD6263S). The devices are housed in a SOT-323 case.
| Peak Repetitive Reverse Voltage (VRRM) | 70 V |
|---|---|
| Continuous Forward Current (IF) | 15 mA |
| Forward Surge Current (tp=1.0s) | 50 mA |
| Power Dissipation (Pd) | 350 mW |
| Operating and Storage Junction Temperature Range | -65 to +150 °C |
The maximum continuous forward current is 15 mA.
The peak repetitive reverse voltage is 70 V.
The operating and storage temperature range is -65 to +150 °C.
