This document is the 1.8 inch SATA interface technology specification, which specifies the performance requirements, product name, product model, appearance size, material, plating and marking of the product

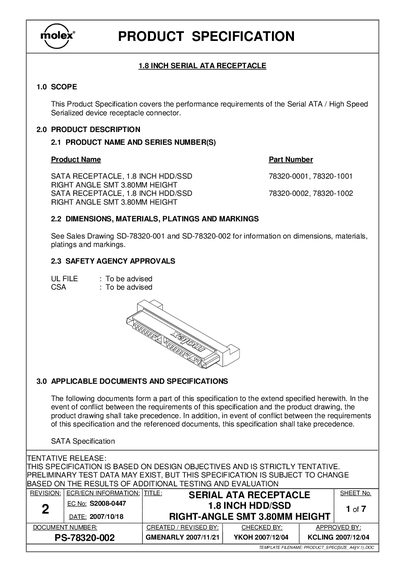

This product specification defines the performance requirements for Molex's 1.8‑inch Serial ATA (SATA) receptacle used on HDD/SSD modules. It includes part numbers, dimensions, material details, and safety approvals.
Key characteristics include a 30 V maximum voltage, 1.5 A current rating, operating temperature range from –40 °C to +105 °C, and detailed mechanical test procedures such as insertion force, removal force, and vibration/shock testing. Environmental limits for humidity, pressure, and soldering profiles are also provided.
| Maximum Voltage | 30 V |
|---|---|
| Maximum Current | 1.5 A DC or AC (RMS) @ 60 Hz |
| Operating Temperature Range | -40 °C to +105 °C |
| Pressure Range | 650 mm – 800 mm Hg |
| Maximum Insertion Force | 20 N |
| Minimum Removal Force | 2.5 N |
| Peak Soldering Temperature | 260 °C ±5 °C |
| Average Ramp Rate (Soldering) | 3 °C/sec max |
The receptacle is rated for a maximum of 30 V.
It can carry up to 1.5 A DC or AC (RMS) at 60 Hz.
The device operates from –40 °C up to +105 °C.
A maximum insertion force of 20 N is specified.
