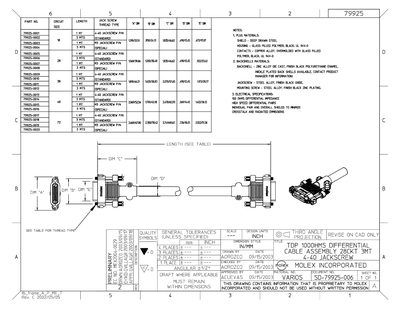

This document provides a detailed parts list for the Molex TDP 1000HMS differential cable assembly, including jack screw types, mounting screws, backshells, and associated material specifications. Each component is identified by a Molex part number and includes notes on material composition and finish.
Electrical specifications are also listed, notably a 400 Ω differential impedance, along with dimensional references and design notes for the cable assembly. The sheet includes revision and approval information for internal use.
| Differential Impedance | 400 Ω |
|---|
The cable has a differential impedance of 400 Ω.
