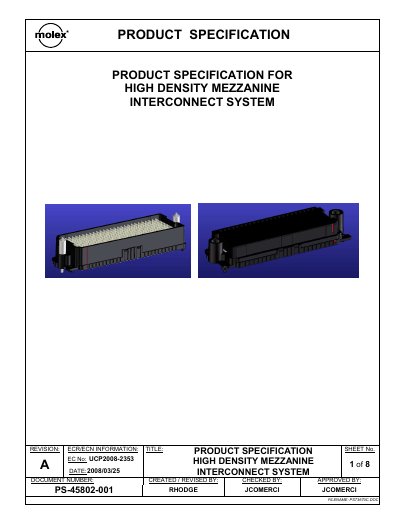

This is the product specification of HD Mezz™ series connectors
The High Density Mezzanine (HD Mezz™) system is a 1.2 mm × 2.0 mm pitch surface‑mount interconnect solution for parallel board‑to‑board applications. It includes a range of receptacle and plug connectors with various stack heights and circuit sizes.
Key performance parameters include a 2 A signal‑contact current rating, 250 VAC voltage rating, operating temperature from –55 °C to +105 °C, 100 cycles durability, 100 Ω differential characteristic impedance, and a digital bandwidth up to 6.5 GHz for 28 mm stack height connectors.
| Current Signal Contact | 2 Amp |
|---|---|
| Voltage Signal Contact | 250 VAC |
| Operating Temperature Range | -55 °C to +105 °C |
| Durability (Mating Cycles) | 100 cycles |
| Characteristic Impedance (Differential) | 100 Ω |
| Digital Bandwidth (28 mm stack) | 6.5 GHz |
The signal contacts are rated for 2 Amp.
They operate from –55 °C up to +105 °C.
The connectors are rated for 100 mating cycles.
The differential characteristic impedance is 100 Ω.
