The I-PASS X4 cable assembly is a Molex‑manufactured product used for PCI‑Express external connections. "IPASS IS A TRADEMARK OF MOLEX" indicates the branding and compliance of the assembly.

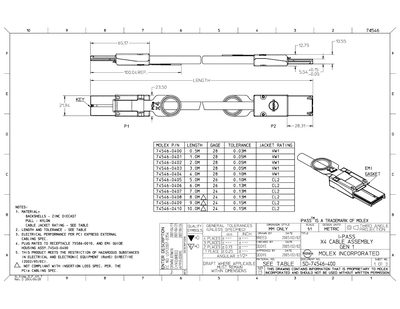

The document lists part numbers with corresponding lengths, wire gauge, tolerance, and jacket ratings, as well as cable dimensions such as gauge, diameter, and minimum outer radius. These specifications help designers select the appropriate cable for their applications.
| Part Number for 0.5 m cable | 74546-0400 |
|---|---|
| Wire gauge for 0.5 m cable | 28 AWG |
| Jacket rating for 0.5 m cable | Vw1 |
| Cable gauge options | 24 AWG, 26 AWG, 25 AWG |
I-PASS is a trademark of Molex.
The part number is 74546-0402.
The 5.0 m cable uses a CL2 jacket rating.
Cable diameters are 10.54 mm, 5.53 mm, and 8.75 mm.
