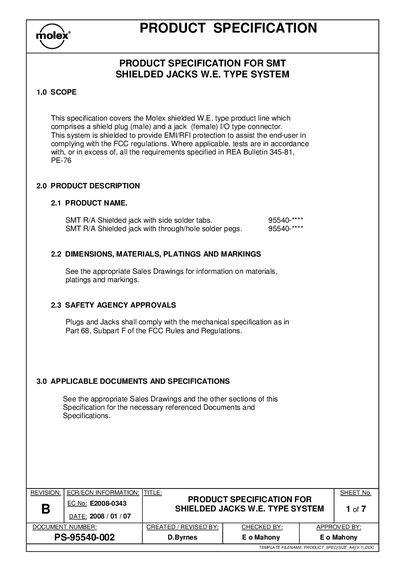

This document is about the product specification of Molex shielded W.E. type product line, including connector types, product names, dimensions, materials, platings and markings.
This specification covers the Molex shielded W.E. type product line, which includes a shielded plug (male) and a jack (female). The system is designed to provide EMI/RFI protection and meet FCC regulations.
Key ratings include 125 V AC voltage, 1.5 A current, operating temperature from –40 °C to +80 °C, 500 MΩ insulation resistance, 2 pF capacitance, 20 dB shielding effectiveness and a 2 Megabaud data‑rate capability. Mechanical requirements such as a 30 N insertion force and 10 daN retention force are also defined.
| Voltage rating | 125 V AC |
|---|---|
| Current rating | 1.5 A |
| Operating temperature range | -40 °C to +80 °C |
| Insulation resistance | ≥ 500 MΩ |
| Capacitance (adjacent terminals) | ≤ 2 pF @ 1 MHz |
| Shielding effectiveness | ≥ 20 dB |
| Data‑rate capability | 2 Megabaud |
| Maximum insertion force | 30 N |
They are rated for 125 V AC.
The maximum current is 1.5 A.
They operate from –40 °C up to +80 °C.
The insulation resistance must be at least 500 MΩ.
