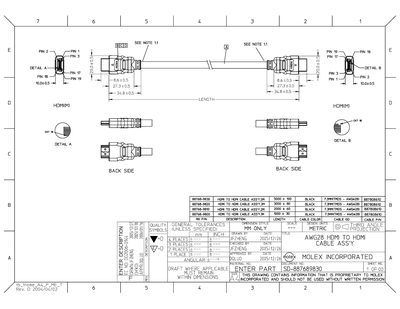

The document provides part numbers, available lengths, and color options for the Molex AWG28 HDMI to HDMI cable assembly. It lists part numbers such as 88768-9830 for the 5 m version and details the cable construction, including the 7.3 mm TMDS‑rated outer diameter.
Mechanical and electrical specifications are included, covering pull‑force requirements, RoHS compliance, and TMDS signal characteristics. Pin assignments and shielding details are also presented for proper integration of the cable into HDMI systems.
| Pull force | 89-111 N |
|---|---|
| Available lengths | 1 m, 2 m, 3 m, 5 m |
| RoHS compliance | Yes |
The cable should stand a pull force of 89‑111 N for 30 seconds without visible termination damage.
The assembly is available in 1 m, 2 m, 3 m, and 5 m lengths.
Yes, the product must meet RoHS compliance.
