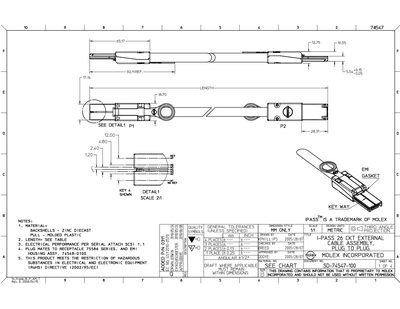

Molex SD-74547-100 Selection Guide
This selection guide lists the mechanical and electrical characteristics of the Molex SD‑74547‑100 connector family. It includes dimension tables, keying identifiers, material specifications, and compliance information.
The document also details the available SAS and SATA cable assemblies, their gauge, length options, routing styles, and the back‑shell material (zinc die‑cast). All data are presented for designers to choose the correct part numbers and ensure RoHS compliance.
Molex SD-74547-100 specifications
| Backshell material | Zinc die‑cast |
|---|---|
| Cable length options | 0.25 m to 7 m |
| Keying identifier format | X4, X5, etc. |
All Molex SD-74547-100 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What keying identifiers are used for the SD-74547-100 series?
The guide lists identifiers such as X4 and X5 for the SAS cable assemblies.
What cable lengths are offered for the SAS cable assemblies?
Lengths range from 0.25 m up to 7 m, depending on the specific part number.
What gauge options are available for the cable assemblies?
The assemblies are offered in 24 AWG, 25 AWG, 26 AWG, and 28 AWG.
What is the keying identifier for this cable?
The keying identifier is X4 SAS.
