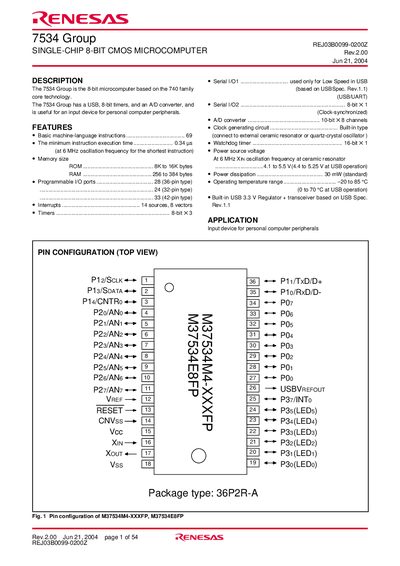

The 7534 Group is an 8-bit microcomputer based on the 740 family core technology. The 7534 Group has a USB, 8-bit timers, and an A/D converter, and is useful for an input device for personal computer peripherals.
The 7534 Group is an 8‑bit CMOS microcomputer based on the 740 family, featuring a built‑in USB interface, 8‑bit timers, a 10‑bit A/D converter, and programmable I/O ports. It is intended for use as an input device for personal computer peripherals.
The document includes a functional block diagram, detailed pin descriptions, memory expansion tables, package outlines, and a revision history that records changes to specifications and package types.
