The DSC 9096 64-bit RISC Microprocessor is a high-performance, high-integration, low-power 64-bit processor that supports 64-bit integer and floating-point operations, has a 200MHz clock frequency, 64GB physical address space, and 179 or 208-pin packages.

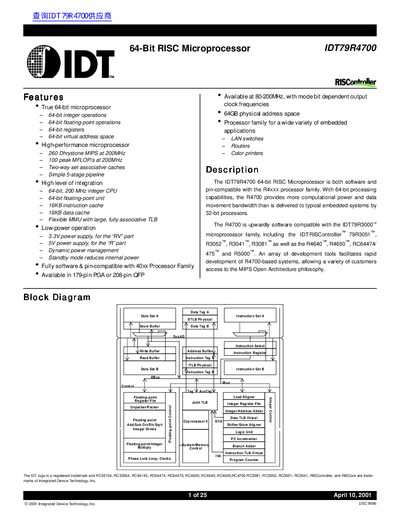

The IDT79R4700 is a 64‑bit RISC microprocessor available at 80‑200 MHz with a 64 GB physical address space. It includes 16 KB instruction and data caches, a simple 5‑stage pipeline, and a flexible MMU with TLBs. The processor supports both 3.3 V and 5 V power supplies and is pin‑compatible with the IDT40xx family.
The datasheet details the integer and floating‑point execution units, cache organization, system interface (64‑bit address/data bus, 9‑bit command bus), and boot‑time configuration options. It also provides performance figures such as 260 Dhrystone MIPS and 100 MFLOP/s at 200 MHz.
| Clock frequency range | 80‑200 MHz |
|---|---|
| Physical address space | 64 GB |
| Instruction cache size | 16 KB |
| Data cache size | 16 KB |
| Cache associativity | Two‑way set associative |
| Floating‑point performance | 100 MFLOP/s at 200 MHz |
| Dhrystone MIPS | 260 MIPS at 200 MHz |
| System bus width | 64‑bit |
| Maximum bus transfer rate | 500 MB/s |
The processor operates from 80 MHz up to 200 MHz.
The IDT79R4700 provides a 64 GB physical address space.
The processor uses a 64‑bit address/data bus for system interfacing.
