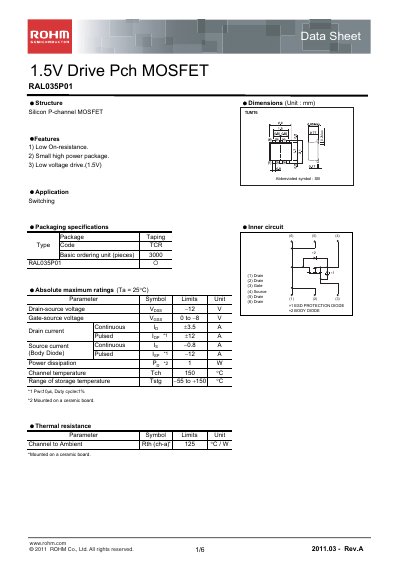

RAL035P01 1.5V Drive Pch MOSFET is a ROHM product with low on-resistance, small high power package and low voltage drive (1.5V). It is widely used in switch power supply and other applications.
The ROHM RALO35P01 is a 1.5 V drive P‑channel MOSFET designed for low‑on‑resistance and small high‑power packages. The datasheet provides absolute maximum ratings, detailed electrical characteristics, and typical performance curves.
Key sections include features, absolute maximum ratings, electrical characteristics, body‑diode data, characteristic curves, measurement circuits, and legal notices. The document also lists packaging specifications and ordering information.
| Drain‑source voltage (VDS) | -12 V |
|---|---|
| Gate‑source voltage (VGS) | -8 V |
| Continuous drain current (ID) | 3.5 A |
| Power dissipation (PD) | 2.41 W |
| Maximum junction temperature (Tj) | 150 °C |
| Thermal resistance, junction‑to‑ambient (RθJA) | 125 °C/W |
The device can withstand a drain‑source voltage of up to -12 V.
It is rated for a continuous drain current of 3.5 A.
The on‑state resistance ranges from 0.2 Ω to 0.75 Ω depending on current and gate voltage.
