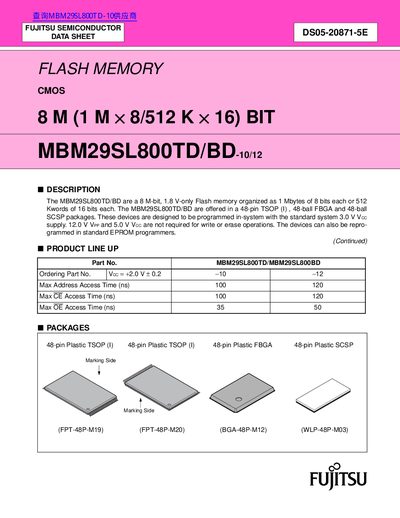

The MBM29SL800TD/BD is a 8 M-bit, 1.8 V-only Flash memory organized as 1 Mbytes of 8 bits each or 512 Kwords of 16 bits each. The product is offered in a 48-pin TSOP (I) , 48-ball FBGA and 48-ball SCSP packages.
The MBM29SL800TD/BD flash memory provides 8 M‑bit capacity, organized as either 1 Mbyte × 8 or 512 Kwords × 16. It operates on a single 1.8 V supply for read, program and erase functions and includes a low‑Vcc detector for power‑loss protection.
The device is supplied in 48‑pin TSOP, 48‑ball FBGA and 48‑ball SCSP packages, supports JEDEC‑standard commands, and features a sector‑erase architecture with a minimum of 100 000 program/erase cycles. Access times are up to 100 ns with separate CE, WE and OE controls.
| Capacity | 8 M‑bit (1 Mbyte × 8 or 512 Kwords × 16) |
|---|---|
| Supply Voltage | 1.8 V |
| Maximum Access Time | 100 ns |
| Maximum CE Access Time | 100 ns |
| Maximum OE Access Time | 35 ns |
| Program/Erase Cycle Endurance | ≥ 100 000 cycles |
| Package Options | 48‑pin TSOP, 48‑ball FBGA, 48‑ball SCSP |
It operates with a single 1.8 V supply for read, program and erase functions.
The maximum address access time is 100 ns (CE 100 ns, OE 35 ns).
The device is rated for a minimum of 100 000 program/erase cycles.
It is available in 48‑pin TSOP, 48‑ball FBGA and 48‑ball SCSP packages.
