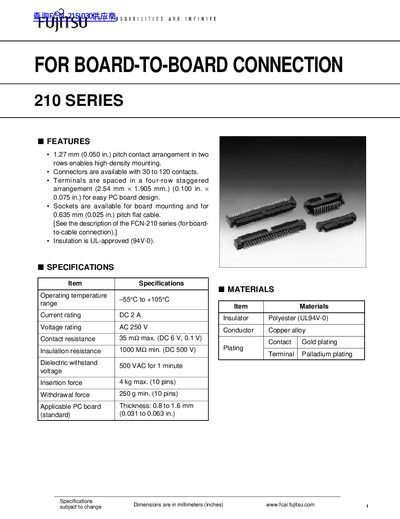

The FCN-210 series is a 1.27 mm pitch double row connector for board-to-board or board-to-cable connection. The series offers 30 to 120 contacts and features UL approved 94V-0 insulation.
This document provides technical specifications and dimensional data for the Fujitsu FCN-215J series of right-angle sockets designed for board-to-board connections. The connectors feature a 1.27 mm pitch contact arrangement in two rows, with terminal spacing suitable for standard PC board design.
Key features include availability in various contact counts ranging from 30 to 120, UL-approved (94V-0) insulation made of polyester, and gold plating on contacts. The datasheet details operating conditions such as a current rating of DC 2A and voltage ratings up to AC 250 V.
| Pitch | 1.27 mm (0.050 in.) |
|---|---|
| Contact Count Range | 30 to 120 contacts |
| Insulation Material | Polyester (UL94V-0) |
| Voltage Rating | AC 250 V |
| Current Rating | DC 2A |
| Contact Resistance | 35 mQ max. |
The pitch is 1.27 mm (0.050 in.) for a two-row contact arrangement.
Connectors are available with 30 to 120 contacts.
