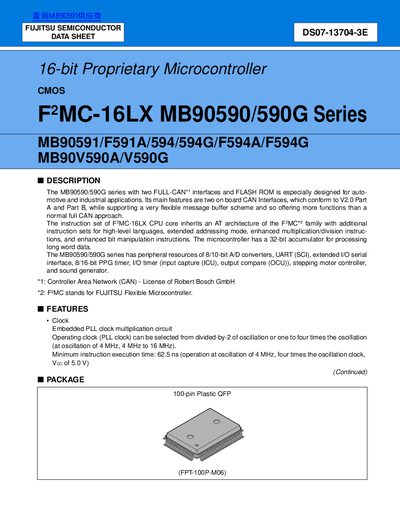

This data sheet introduces the features and functions of the MB90590/590G series of 16-bit F2MC-16LX microcontrollers. This series of microcontrollers has two FULL-CAN interfaces and FLASH ROM, and is specially designed for automotive and industrial applications.
The MB90590/590G series is a microcontroller designed specifically for automotive and industrial applications. It features two on-board CAN interfaces conforming to V2.0 Part A and Part B, along with flexible message buffering schemes.
The device utilizes the F7MC-16LX CPU core, which inherits an AT architecture from the F*MC* family. Key peripherals include 8/10-bit A/D converters, UARTs, extended I/O serial interfaces, timers, a stepping motor controller, and a sound generator.
| Operating clock range | 4 MHz to 16 MHz |
|---|---|
| Minimum instruction execution time | 62.5 ns |
| Package type | 100-pin Plastic QFP |
| Flash ROM size options | 256 Kbytes/384 Kbytes |
| Number of CAN interfaces | 2 |
| A/D converter resolution | 8/10-bit |
The series is especially designed for automotive and industrial applications.
It conforms to V2.0 Part A and Part B of the Controller Area Network (CAN) specification.
The minimum instruction execution time is 62.5 ns when operating at a 4 MHz oscillation with four times the oscillation clock.
