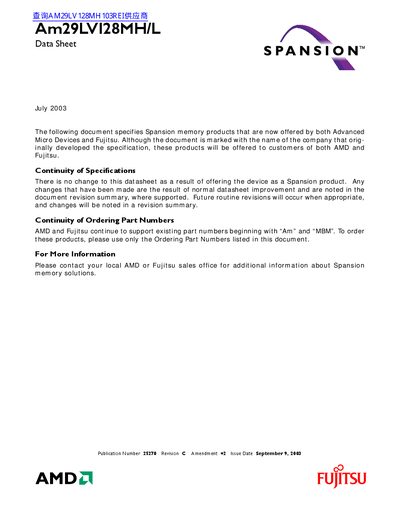

This document is AMD's datasheet about Am29LV128MH/L
The Am29LV128MH/L is a 128 Mbit (8 M x 16-Bit/16 M x 8-Bit) MirrorBit flash memory device manufactured on the 0.23 µm process technology. It features single power supply operation at 3.0 volts and includes VersatileI/O control, allowing data input/output voltages to be determined by the Vio pin ranging from 1.65V to 3.6V.
The device offers high performance with access times of 90 ns or higher and supports flexible sector architecture with 256 sectors of 32 Kword (64 Kbyte) each. Key features include a minimum 100,000 erase cycle guarantee per sector, 20-year data retention at 125°C, and hardware protection mechanisms such as Sector Group Protection and SecSi™ for secure identification.
| Capacity | 128 Megabit (8 M x 16-Bit/16 M x 8-Bit) |
|---|---|
| Access Time | 90 ns |
| Erase Cycle Guarantee | Minimum 100,000 per sector |
| Data Retention | 20 years at 125°C |
| Package Options | 56-pin TSOP, 64-ball Fortified BGA |
The device contains 256 sectors, each with a size of 32 Kword (64 Kbyte).
Yes, the document specifies Spansion memory products offered by both Advanced Micro Devices and Fujitsu.
