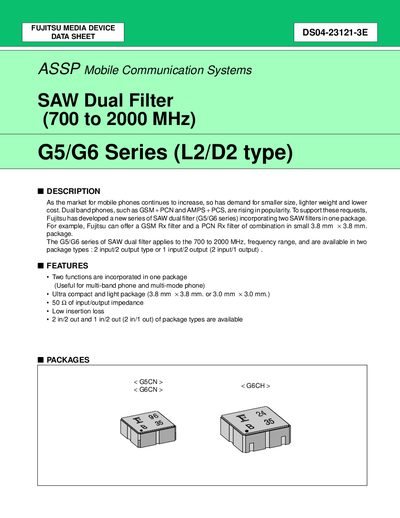

Fujitsu G5/G6 series SAW dual filter is a dual function filter for mobile communication systems. It integrates two SAW filters and has the features of small size, light weight and low cost. This filter is applicable to the frequency range of 700-2000MHz, and is available in two package types: 2 in/2 out and 1 in/2 out (2 in/1 out).
The G5/G6 Series SAW dual filters from Fujitsu integrate two SAW filters in a single compact package, supporting 700 MHz to 2000 MHz. Two package types are offered: 2‑in/2‑out and 1‑in/2‑out, with dimensions of 3.8 mm × 3.8 mm or 3.0 mm × 3.0 mm.
The document provides pin assignments, absolute maximum ratings, recommended operating conditions, standard frequencies, and detailed electrical characteristics such as insertion loss, in‑band ripple, and maximum input power for each filter variant.
| Frequency range | 700 MHz – 2000 MHz |
|---|---|
| Package dimensions | 3.8 mm × 3.8 mm or 3.0 mm × 3.0 mm |
| Input/Output impedance | 50 Ω |
| Operating temperature | -30 °C to +85 °C |
The recommended operating temperature is –30 °C to +85 °C.
Two sizes are offered: 3.8 mm × 3.8 mm and 3.0 mm × 3.0 mm.
The filters have a 50 Ω input/output impedance.
