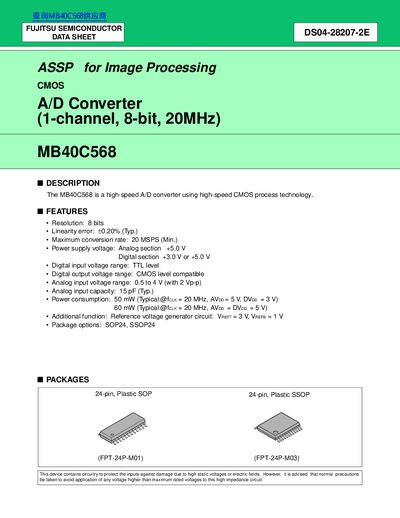

The MB40C568 is a high-speed CMOS A/D converter from Fujitsu Semiconductor. It features an 8-bit resolution and a maximum conversion rate of 20MHz.
The MB40C568 is a high-speed A/D converter utilizing high-speed CMOS process technology. It features an 8-bit resolution and a linearity error of 0.20% typical, capable of converting analog signals at up to 20 MSPS.
The device includes additional functions such as reference voltage generator circuits for Vaerr (3 V) and Vrers (1 V). It is available in 24-pin Plastic SOP and SSOP packages and operates with TTL-level digital inputs and CMOS-compatible outputs.
| Resolution | 8 bits |
|---|---|
| Linearity error | 0.20% (Typ.) |
| Maximum conversion rate | 20 MSPS (Min.) |
| Analog input voltage range | 0.5 to 4 V |
| Package options | SOP24, SSOP24 |
The maximum conversion rate is 20 MSPS (Minimum).
The device is available in 24-pin Plastic SOP and 24-pin Plastic SSOP packages.
The analog section requires +5.0 V, while the digital section can use either +3.0 V or +5.0 V.
