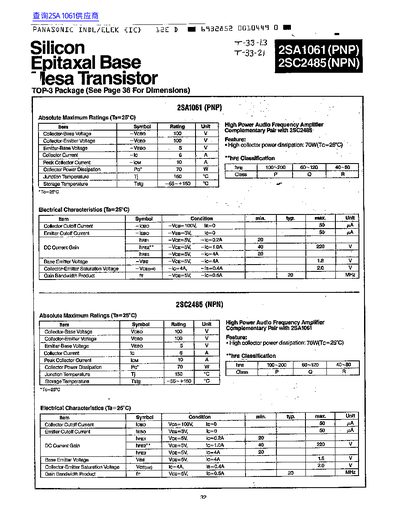

This datasheet provides the key electrical characteristics and absolute maximum ratings for the Panasonic 2SA1061 (PNP) and 2SC2485 (NPN) power transistors. The document includes collector‑base, collector‑emitter, and emitter‑base voltage limits, current capabilities, power dissipation, and thermal limits.
Typical performance curves, safe operating area information, and package dimensions are also listed, allowing designers to assess suitability for high‑power audio‑frequency amplifier applications.
| Collector‑Emitter Voltage (VcEO) | 100 V |
|---|---|
| Collector Current (Ic) | 6 A |
| Peak Collector Current | 10 A |
| Gain‑Bandwidth Product | 20 MHz |
The maximum collector current is 6 A.
The maximum collector‑emitter voltage is 100 V.
The storage temperature range is –55 °C to +160 °C.
