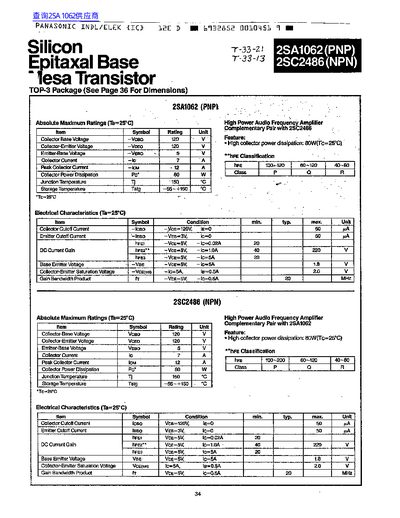

This document provides the electrical specifications for Panasonic's 2SA1062 (PNP) and 2SC2486 (NPN) power transistors. It lists absolute maximum ratings, such as voltage limits, current limits, power dissipation, and temperature ranges, together with typical characteristic curves.
The datasheet also includes package information (TOP‑3) and typical performance graphs, helping designers assess safe operating areas and gain‑bandwidth product for audio‑frequency amplifier applications.
| Collector‑Base Voltage (VCB) | 120 V |
|---|---|
| Collector Power Dissipation (PC) | 80 W |
| Junction Temperature (Tj) | 150 °C |
| Storage Temperature (Tstg) | -65 °C to +150 °C |
The maximum collector‑base voltage is 120 V.
Each transistor can dissipate up to 80 W of collector power.
The devices may be stored from –65 °C up to +150 °C.
