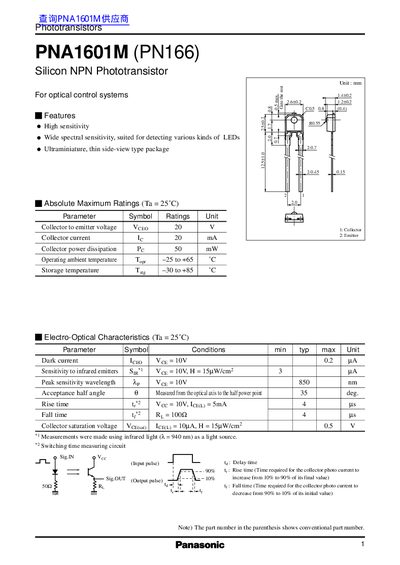

PNA1601M (PN166) is a silicon NPN phototransistor for optical control systems. It features high sensitivity, wide spectral sensitivity, suited for detecting various kinds of LEDs, ultraminiature, thin side-view type package.
The Panasonic PNA1601M (PN166) is an ultraminiature, thin side‑view silicon NPN phototransistor designed for optical control systems. It offers high sensitivity, wide spectral response, and a compact package suitable for detecting various LEDs.
The datasheet provides absolute maximum ratings, electro‑optical characteristics, and switching time information, along with important export and usage precautions for reliable integration into electronic equipment.
| Collector‑to‑Emitter Voltage (VCEO) | 20 V |
|---|---|
| Collector Current (IC) | 20 mA |
| Collector Power Dissipation (PC) | 50 mW |
| Operating Ambient Temperature | -25 °C to +65 °C |
| Storage Temperature | -30 °C to +85 °C |
| Peak Sensitivity Wavelength | 850 nm |
| Dark Current (ID) | 0.2 µA |
The maximum collector‑to‑emitter voltage is 20 V.
It is rated for an ambient temperature range of –25 °C to +65 °C.
The peak sensitivity wavelength is 850 nm.
Yes, an export permit from the Japanese government is required for controlled products under the Foreign Exchange and Foreign Trade Law.
