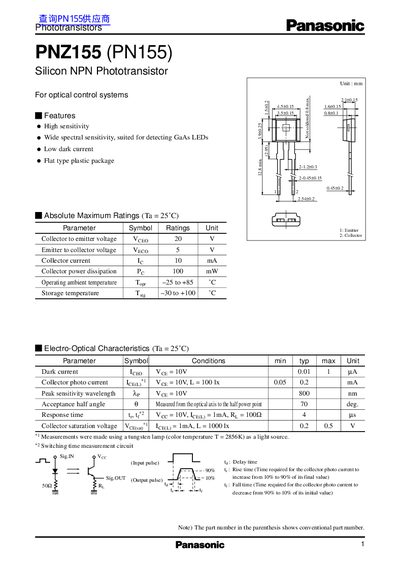

The PNZ155 (PN155) is a silicon NPN phototransistor with a peak sensitivity wavelength of 800nm. It has a high photosensitivity of 0.05mA at 100lx and a fast response time of 4µs at 10V.
The PNZ155 is a flat‑type plastic package silicon NPN phototransistor designed for optical control systems. It offers high sensitivity, wide spectral response suited to GaAs LEDs, and low dark current.
Key specifications include a collector‑to‑emitter voltage of 20 V, a maximum collector current of 10 mA, and a peak sensitivity at 800 nm with a 70° acceptance half‑angle. The device operates from –25 °C to +85 °C and is covered by standard export and liability notices.
| Collector‑to‑emitter voltage (VCEO) | 20 V |
|---|---|
| Emitter‑to‑collector voltage (VECO) | 5 V |
| Maximum collector current (IC) | 10 mA |
| Collector power dissipation (PC) | 100 mW |
| Dark current (Id) | 0.01 µA (typ) |
The PNZ155 can handle up to 10 mA of collector current.
