The data table introduces the parameters of LN01201C(Q), LN01301C(Q), LN01401C(Q), LN01801C(Q) four LED products, including maximum power, working current, working voltage, light color, etc.

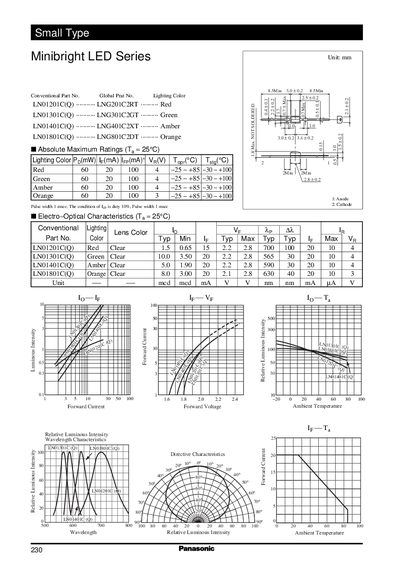

The datasheet lists the electrical and optical specifications for the Small Type Minibright LED Series, including forward current, forward voltage, typical luminous intensity, peak wavelength and ambient temperature range for each color variant (Red, Green, Amber, Orange). It also shows absolute maximum ratings and electro‑optical characteristics at 25 °C.
Safety information is included, noting that the LEDs contain gallium arsenide (GaAs) and must be handled, stored and disposed of according to hazardous‑material regulations. Export permits and usage limits for standard applications are also described.
| Forward Current (mA) | 60 |
|---|---|
| Typical Luminous Intensity (mW) | 0.65 |
Gallium arsenide (GaAs) is used in this product.
Do not mix them with ordinary industrial waste or household refuse; follow relevant laws and regulations.
The maximum forward current is 60 mA.
