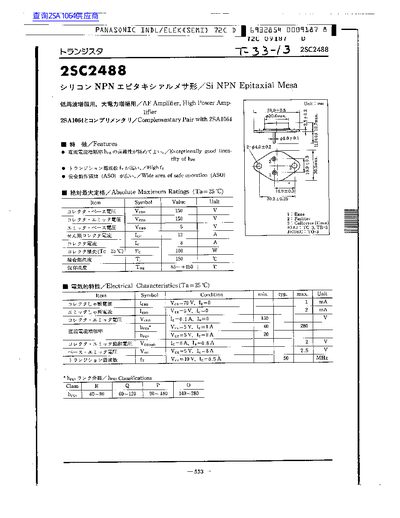

The Panasonic 2SC2488 is a silicon NPN epitaxial mesa transistor designed for low‑frequency and high‑power amplification. It offers excellent linearity of DC current gain and a wide safe‑operation area.
Key electrical characteristics include high collector‑base and collector‑emitter voltage ratings, high transition frequency, and robust power dissipation capability, making it suitable for demanding amplifier applications. This manual is written in Japanese.
| Collector‑Base Voltage (Vcbo) | 150 V |
|---|---|
| Emitter‑Base Voltage (Vebo) | 5 V |
| Power Dissipation (Pc) | 100 W |
| Maximum Junction Temperature (Tj) | 150 °C |
| Storage Temperature Range (Tss) | -65 °C to 150 °C |
It can be stored from –65 °C up to 150 °C.
