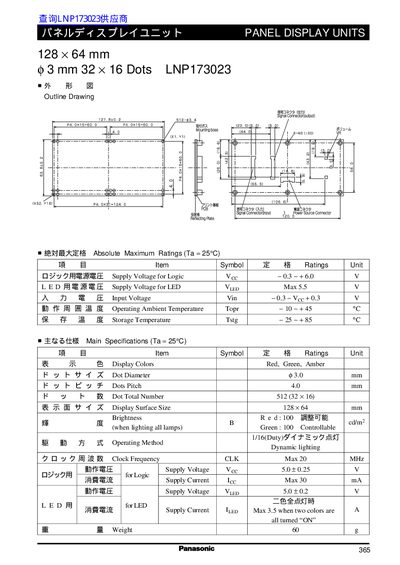

The LNP173023 is a compact panel display unit from Panasonic, measuring 128 × 64 mm with a 4 mm thickness and a resolution of 32 × 16 dots. It supports red, green, and amber colors and is designed for use in various electronic applications.
Key specifications include a logic supply voltage range of –0.3 V to +6.0 V, LED supply voltage up to 5.5 V, a maximum clock frequency of 20 MHz, and operating temperature from –10 °C to +45 °C. The unit weighs 60 g and has a dot pitch of 4.0 mm.
| Display Surface Size | 128 x 64 mm |
|---|---|
| Dot Pitch | 4.0 mm |
| Dot Total Number | 512 (32 x 16) |
| Supply Voltage for Logic | -0.3~+6.0 V |
| Supply Voltage for LED | Max 5.5 V |
| Input Voltage Vin | -0.3~+0.3 V |
| Clock Frequency (max) | 20 MHz |
| Logic Supply Current (max) | 30 mA |
| LED Supply Current (max) | 3.5 mA |
| Weight | 60 g |
| Display Colors | Red, Green, Amber |
| Dot Diameter | 63.0 mm |
The logic supply voltage range is –0.3 V to +6.0 V.
It has a total of 512 dots arranged as 32 × 16.
