The product is an extremely low noise, high stability zener diode, suitable for power supply stabilization. The product has extremely low noise voltage (2.4V to 39V, 1/3 to 1/10 of conventional products), excellent rising performance (in the low current range), easy to select the optimal diode (due to its finely divided zener voltage ranks), guaranteed reliability equivalent to that of conventional products (Mini type package), allowing to reduce the mounting area, thickness and weight substantially compared with those of conventional products, allowing both reflow and flow mode of automatic soldering, allowing automatic mounting by an existing chip mounter.

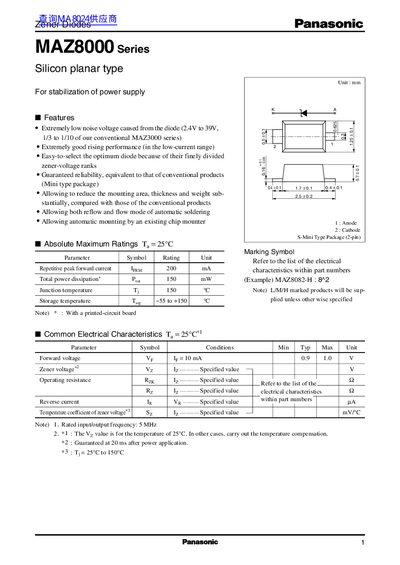

The MAZ8000 series Zener diodes from Panasonic are silicon planar devices designed for power‑supply stabilization. They feature extremely low noise voltage, fine zener‑voltage steps, and a compact mini‑type 2‑pin package that supports both reflow and wave soldering.
The datasheet provides absolute maximum ratings, typical forward voltage, a wide zener‑voltage range from 2.28 V to 25.10 V, and detailed electrical characteristics for each part number. Package and temperature specifications enable reliable automatic mounting and operation up to 150 °C.
| Repetitive peak forward current | 200 mA |
|---|---|
| Total power dissipation | 150 mW |
| Junction temperature (max) | 150 °C |
| Storage temperature range | -55 °C to +150 °C |
| Package type | Mini type 2‑pin |
| Zener voltage (minimum) | 2.28 V |
| Zener voltage (maximum) | 25.10 V |
The maximum repetitive peak forward current is 200 mA.
They are supplied in a mini‑type 2‑pin package.
The storage temperature range is –55 °C to +150 °C.
