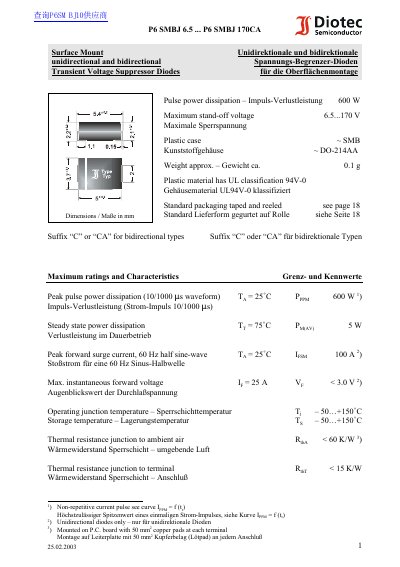

P6 SMBJ 6.5.170CA Surface Mount Unidirectional and Bidirectional Transient Voltage Suppressor Diodes have 600 W of pulse power dissipation and 6.5.170 V of maximum standoff voltage.
This datasheet describes the P6 SMBJ family of surface‑mount transient voltage suppressor (TVS) diodes. It covers both unidirectional and bidirectional types (suffix “C” or “CA”) and lists the electrical characteristics, maximum ratings, and mechanical details needed for design and assembly.
Key information includes stand‑off voltage ranges, peak pulse power dissipation, forward voltage, thermal resistance, and recommended PCB pad size. Packaging options such as taped‑and‑reeled reels are also provided. This manual is written in German.
| Stand‑off voltage | 6.5 V – 170 V |
|---|---|
| Thermal resistance, junction‑to‑ambient (RthA) | < 60 K/W |
| Weight | ≈ 0.1 g |
Each terminal should be mounted on a PCB with a 50 mm² copper pad.
The series covers stand‑off voltages from 6.5 V up to 170 V.
The junction‑to‑ambient thermal resistance is less than 60 K/W.
