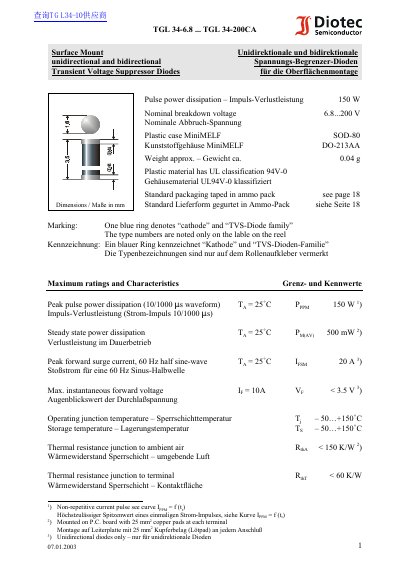

TGL 34-6.8 . TGL 34-200CA Surface Mount Unidirectional and bidirectional Transient Voltage Suppressor Diodes
The TGL 34 family consists of surface‑mount TVS diodes offered in both unidirectional and bidirectional versions. They are designed to protect electronic circuits from transient voltage spikes.
Key specifications include a nominal breakdown voltage from 6.8 V up to 200 V, a peak pulse power dissipation of 150 W, and a steady‑state dissipation of 500 mW. Devices are supplied in a MiniMELF (SOD‑80) plastic package weighing about 0.04 g and are mounted on a PCB with 25 mm² copper pads. This manual is written in German.
| Nominal breakdown voltage | 6.8 V … 200 V |
|---|---|
| Package type | MiniMELF SOD‑80 |
| Weight | ≈0.04 g |
The suffix “A” denotes a tighter breakdown‑voltage tolerance of ±5 %.
They are supplied in a MiniMELF (SOD‑80) plastic package.
Yes, for bidirectional types (suffix “C” or “CA”) the electrical characteristics apply in both directions.
