BYP 35A05-6 BYP 35K05-6 series is a high temperature silicon rectifier diode produced by BI Technologies of Germany. The rated current is 35A and the rated reverse peak voltage is 50-600V. It is packaged in a metal press-fit case with UL94V-0 flame retardant grade and has an external dimension of 4x4x2.3mm.

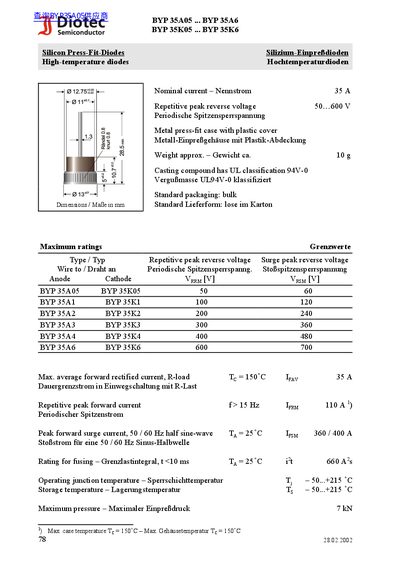

This document is a technical datasheet for the Diotec Semiconductor BYP 35A/B series of silicon press-fit diodes. These components are designed as high-temperature diodes suitable for applications requiring robust thermal performance, featuring a metal press-fit case with a plastic cover.
The datasheet provides detailed maximum ratings and electrical characteristics, including nominal currents up to 35A average forward rectified current and repetitive peak reverse voltages ranging from 50V to 600V. It also lists specific operating temperature ranges for the junction and storage, as well as thermal resistance values.
| Nominal current (average forward rectified) | 35A |
|---|---|
| Repetitive peak reverse voltage range | 50...600 V |
| Repetitive peak forward current | 110 A |
| Thermal resistance junction to case | <0.8 K/W |
The nominal current (Nennstrom) is 35A.
The nominal current is rated at 35A.
The maximum repetitive peak reverse voltage for the BYP 35K6 model is 700 V.
