The BAV18 is a silicon planar diode with a repetitive peak reverse voltage of 50~200V, a maximum average forward rectified current of 250mA, a maximum periodic peak reverse voltage of 50~200V, a maximum peak reverse voltage of 60~250V, a maximum power dissipation of 500mW, and a maximum forward surge current of 1A and 5A. The package is available in DO-35 and SOD-27.

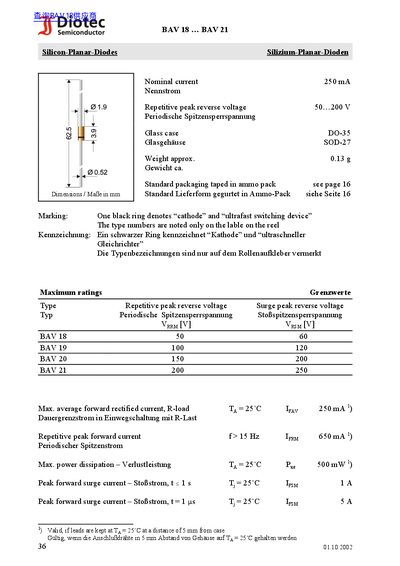

This document provides technical specifications for the Diotec BAV series of silicon-planar diodes, covering models from BAV 18 to BAV 21. It details nominal currents ranging up to 250 mA and repetitive peak reverse voltages between 50 V and 200 V. This manual is written in German.
| Nominal current | 250 mA |
|---|---|
| Repetitive peak reverse voltage (BAV 18) | 50 V |
| Repetitive peak reverse voltage (BAV 21) | 200 V |
| Operating junction temperature | -50...+200°C |
| Reverse recovery time | < 50 ns |
The maximum average forward rectified current with an R-load at Ty =25°C is 250 mA.
The nominal current is rated at 250 mA.
One black ring denotes the cathode and identifies it as an ultrafast switching device.
