ZMM 1, ZMM 100 are surface mount silicon planar Zener diodes with a maximum power dissipation of 500 mW. They have a nominal Z-voltage of 1-100 V and are housed in a MiniMELF SOD-80 glass case. They weigh approximately 0.05g and are standardly supplied on a reel.

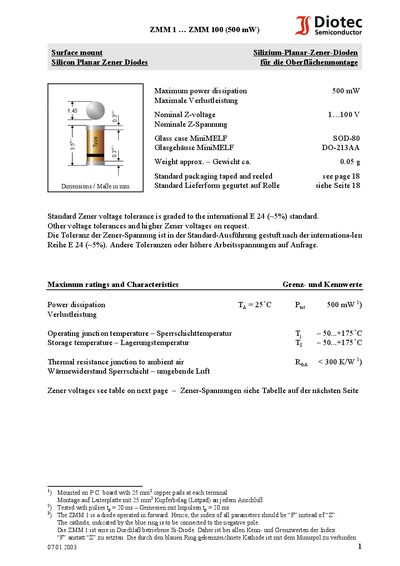

This document provides technical data and electrical characteristics for the ZMM 1 through ZMM 100 series of Silicon Planar Zener Diodes designed for surface mount technology. The devices are housed in a MiniMELF (DO-213AA) glass case and feature a maximum power dissipation of 500 mW at an ambient temperature of 25°C. This manual is written in German.
| Maximum power dissipation | 500 mW |
|---|---|
| Nominal Z-voltage range | 1...100 V |
| Operating junction temperature | - 50...+175 °C |
| Storage temperature | - 50...+175 °C |
| Thermal resistance junction to ambient air | < 300 K/W |
The devices are housed in a MiniMELF glass case.
The cathode, indicated by the blue ring, must be connected to the negative pole.
