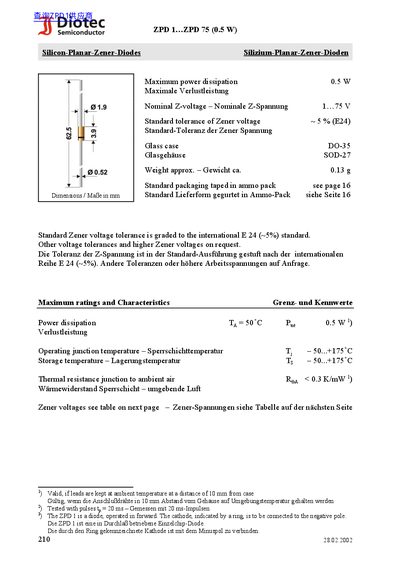

This is an English document about ZPD 1…ZPD 75 (0.5 W) silicon planar Zener diodes.
This document is a technical datasheet for the Diotec ZPD 1...ZPD 75 (0.5 W) Silicon-Planar-Zener-Diodes. It provides maximum ratings such as power dissipation of 0.5 W and operating junction temperatures from -30 to +175 C.
| Maximum power dissipation | 0.5 W |
|---|---|
| Standard tolerance of Zener voltage | < 3 % (E24) |
| Package type | Glass case DO-33 / SOD-27 |
| Operating junction temperature | -30...+175 C |
The standard Zener voltage tolerance is graded to the international E 24 (-39) standard.
Yes, other voltage tolerances and higher energy voltages are available on request.
