Diotec 1.5 SMCJ 6.5 to 170CA Transient Voltage Suppressor Datasheet

Q: What suffix indicates bidirectional types?

The suffix 'C' or 'CA' is used for bidirectional types.

Q: How should the diodes be mounted on a PCB?

They must be mounted on a P.C. board with 50 mm² copper pads at each terminal.

1.5 SMCJ 6.5...170CA Surface Mount Unidirectional and bidirectional Transient Voltage Suppressor Diodes technical specifications.

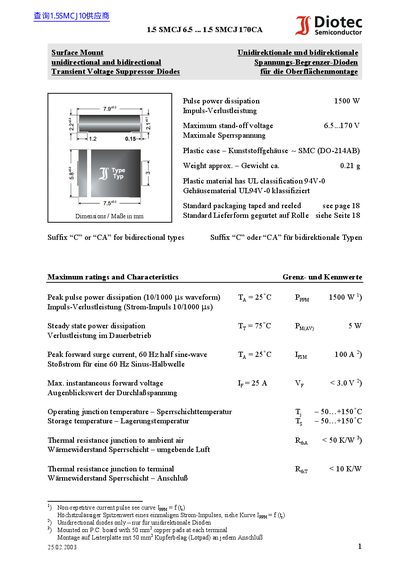

Diotec 1.5 SMCJ 6.5 to 170CA Transient Voltage Suppressor Datasheet - cover page

Brand: Diotec
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 162 KB
Published: 05 June, 2012
Updated: 01 October, 2023
Model: 170CA
MD5 checksum: AC33B51BA05B057B1BD9B35923742D60
PDF: Diotec 1.5 SMCJ 6.5 to 170CA Transient Voltage Suppressor Datasheet PDF

About this manual

This document is a technical datasheet for the Diotec 1.5 SMCJ series of surface mount transient voltage suppressor diodes. The product line includes both unidirectional and bidirectional types, designated by suffixes 'C' or 'CA', with stand-off voltages ranging from 6.5V to 170V.

What's inside

Maximum Ratings
Electrical Characteristics
Thermal Resistance
Dimensions
Packaging

Specifications

Peak pulse power dissipation (10/1000 µs)	1500 W
Maximum stand-off voltage range	6.5...170 V
Package type	SMC (DO-214AB)
Weight approx.	0.21 g
Thermal resistance junction to ambient air	< 50 K/W

Frequently asked questions

What suffix indicates bidirectional types?
