uf 600a is an ultrafast switching silicon rectifier produced by littelfuse company. it has a rated current of 6a, a rated reverse peak voltage of 50-1000v, a plastic case of p-600 style, a weight of about 1.5g, and an ul94v-0 certification. the standard packaging is taped in ammo pack

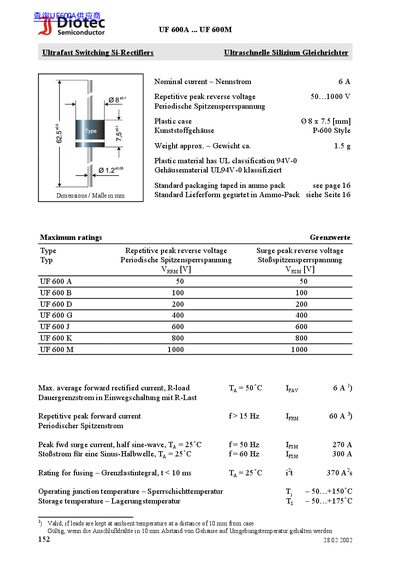

This document is a technical datasheet for the Diotec UF 600 series of ultrafast switching silicon rectifiers. It covers models ranging from UF 600A to UF 600M, providing detailed specifications in both English and German.
The datasheet outlines maximum ratings such as repetitive peak reverse voltage (50V to 1000V) and average forward current (6A). It also details electrical characteristics including reverse recovery time, forward voltage drop, leakage current, and thermal resistance values. This manual is written in German.
| Nominal current | 6A |
|---|---|
| Repetitive peak reverse voltage range | 50...1000 V |
| Operating junction temperature | -50..+150°C |
| Reverse recovery time (UF 600A...G) | <75 ns |
| Forward voltage (at I=1A) for UF 600J...M | <1.7 V |
The maximum average forward rectified current with a resistive load at Tj = 50°C is 6A.
The peak forward surge current for a half sine-wave at 50 Hz and Tj = 25°C is 270A.
