The document describes the features and characteristics of the 3EZ 1 to 3EZ 200 series of silicon power Zener diodes. These diodes are manufactured using non-planar technology and have a maximum power dissipation of 3W and nominal Zener voltages ranging from 1V to 200V. They come in a standard packaging format taped in an ammo pack.

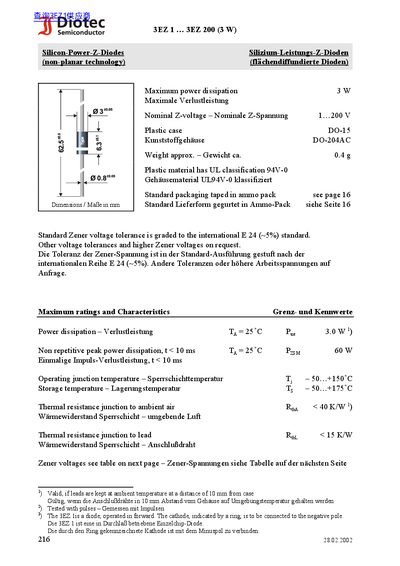

This document is a technical datasheet for the Diotec Semiconductor 3EZ series of non-planar silicon power zener diodes. The series covers Zener voltages ranging from 1V to 200V and features a standard plastic case in DO-15 (DO-204AC) packaging.
| Maximum power dissipation | 3 W |
|---|---|
| Package type | DO-15 (DO-204AC) |
| Zener voltage tolerance standard | E 24 (~5%) |
| UL classification | 94V-0 |
The maximum power dissipation is 3W.
Yes, other voltage tolerances and higher Zener voltages are available on request.
