ZMM series 500mW silicon planar diodes, with SOD-80 small glass package, maximum power dissipation 500mW, temperature resistance -50-175℃, with 2% tolerance and 5% tolerance.

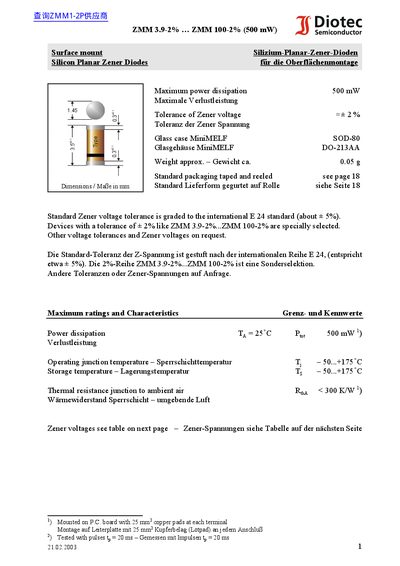

This document is a technical datasheet for the Diotec ZMM series of Silicon Planar Zener Diodes designed for surface mounting (MiniMELF SOD-80 package). The product line covers zener voltages ranging from 3.9V to 100V with a standard power dissipation rating of 500 mW (tested with pulses t=20 ms) and a maximum continuous power dissipation of 300 mW at 25°C. This manual is written in German.
| Power dissipation (25°C) | 300 mW |
|---|---|
| Package type | MiniMELF SOD-80 |
The devices come in standard packaging taped and reeled.
The maximum power dissipation is 300 mW.
