Diotec Electronics 5 Amp Silicon Bridge Rectifiers Series SB500-SB510 Datasheet

Q: What is the surge overload rating?

The device has a surge overload rating to 200 amps peak.

Q: Is the package RoHS compliant?

Yes, the construction is RoHS compliant.

This datasheet provides the maximum ratings and electrical characteristics of the BRSB-500-1C silicon bridge rectifier.

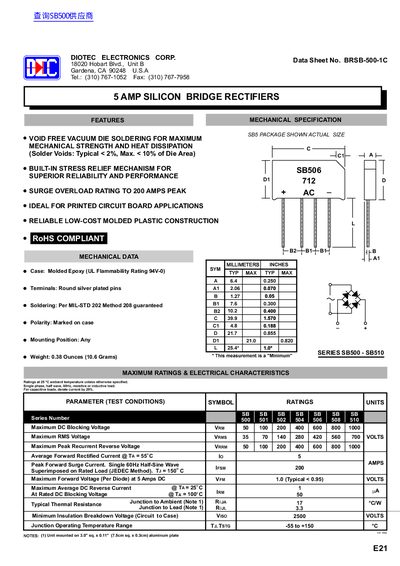

Diotec Electronics 5 Amp Silicon Bridge Rectifiers Series SB500-SB510 Datasheet - cover page

Brand: Diotec
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 316 KB
Published: 07 June, 2012
Updated: 30 September, 2023
Model: SB500 - SB510
MD5 checksum: 883ACB59765A241EFAC19CC7C8995473
PDF: Diotec Electronics 5 Amp Silicon Bridge Rectifiers Series SB500-SB510 Datasheet PDF

About this manual

This document is a technical datasheet from Diotec Electronics Corporation covering the Series SB500 through SB510 of 5 Amp Silicon Bridge Rectifiers. It provides comprehensive electrical characteristics, maximum ratings, and thermal resistance data for various voltage models ranging from 50V to 1000V.

What's inside

Features
Mechanical Specification
Maximum Ratings & Electrical Characteristics
Ratings at 25 C ambient temperature
Forward Current Derating Curve
Typical Forward Characteristic Per Diode
Typical Reverse Characteristics

Specifications

Average Forward Rectified Current	5 Amps
Peak Forward Surge Current	200 AMPS
Maximum Forward Voltage (Per Diode)	1.0 Volts Typical < 0.95
Minimum Insulation Breakdown Voltage	2500 VOLTS
