DD 300…DD 1800 Fast Switching High Voltage Si-Rectifiers are highly reliable semiconductor devices which are used in circuits to achieve DC. These devices are characterized by high reliability, high temperature stability, low RON and low power consumption.

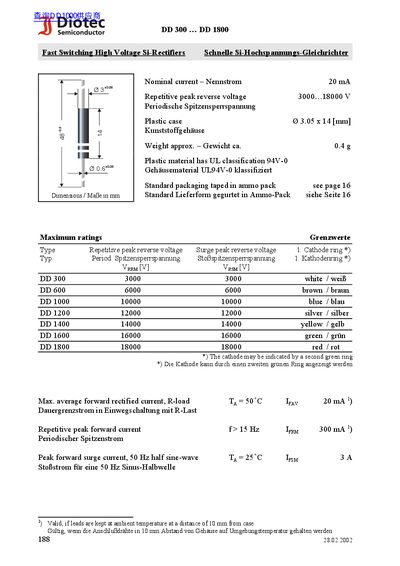

This document is a technical datasheet for the Diotec DD 300 through DD 1800 series of fast switching high voltage silicon rectifiers. The components are housed in plastic cases with UL 94V-0 classification and feature cathode rings color-coded by model type.
The datasheet specifies maximum ratings including repetitive peak reverse voltages ranging from 3,000 V to 18,000 V and average forward rectified currents of 20 mA. Key electrical characteristics include a typical forward voltage of less than 40V and a reverse recovery time under 150 ns.
| Reverse recovery time | < 150 ns |
|---|
The operating junction temperature ranges from -50°C to +150°C.
The typical forward voltage at Tj=25°C and If=10 mA is less than 40V.
