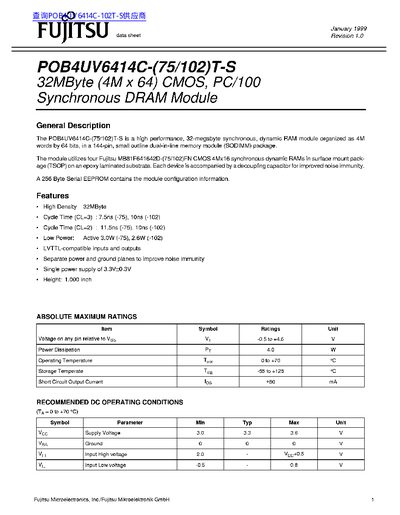

The POB4UV6414C-(75/102)T-S is a 32‑megabyte, 144‑pin SODIMM SDRAM module organized as 4M words by 64 bits. It uses four Fujitsu MB81F641642D synchronous DRAM chips and includes a 256‑byte serial EEPROM for configuration data.
The document contains a functional diagram, pin descriptions, serial PD information, absolute maximum ratings, recommended operating conditions, DC characteristics, capacitance values, and ordering information, helping designers integrate the module into their systems.
| Memory capacity | 32 MByte (4M × 64) |
|---|---|
| Active power consumption | 3.0 W (‑75), 2.6 W (‑102) |
| Supply voltage | 3.3 V ± 0.3 V |
| Module height | 1.000 inch |
| Input capacitance (address, WE*, CKE, RAS*, CAS*, CS0*) | 25 pF |
| Data width | 64 bits |
The module uses a single power supply of 3.3 V ± 0.3 V.
Active power consumption is 3.0 W for the –75 grade and 2.6 W for the –102 grade.
The module height is 1.000 inch.
