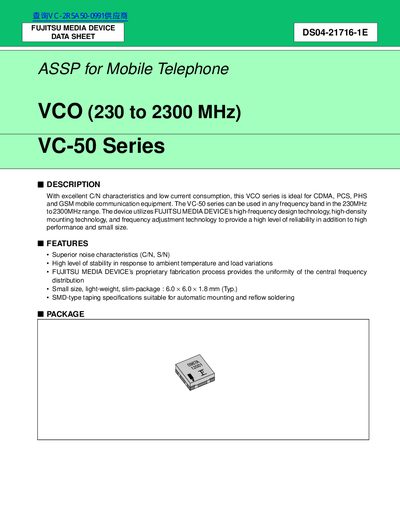

This data sheet introduces the VC-50 series VCO's features. This VCO series has excellent C/N characteristics and low current consumption, making it ideal for CDMA, PCS, PHS and GSM mobile communication equipment. The VC-50 series can be used in any frequency band in the 230MHz to 2300MHz range. The device utilizes FUJITSU MEDIA DEVICE’s high-frequency design technology, high-density mounting technology, and frequency adjustment technology to provide a high level of reliability in addition to high performance and small size.
The VC-50 Series voltage‑controlled oscillator (VCO) covers a wide frequency range of 230 MHz to 2300 MHz and is intended for CDMA, PCS, PHS and GSM mobile communication equipment. It offers superior noise characteristics, high stability against temperature and load variations, and a compact 6.0 × 6.0 × 1.8 mm package.
The document lists pin assignments, detailed electrical characteristics for each model variant, recommended reflow mounting and washing procedures, and contact information for Fujitsu Media Device worldwide.
| Frequency range | 230‑2300 MHz |
|---|---|
| Package size | 6.0 × 6.0 × 1.8 mm (Typ.) |
| Supply voltage (Vee) max | +6.0 V |
| Current consumption | 6.4 mA |
Mounting should follow the shown temperature profile with gentle gradients and a pre‑heating step of 140 °C to 160 °C for 60 seconds, followed by heating and cooling phases.
The device operates from –30 °C up to +80 °C.
