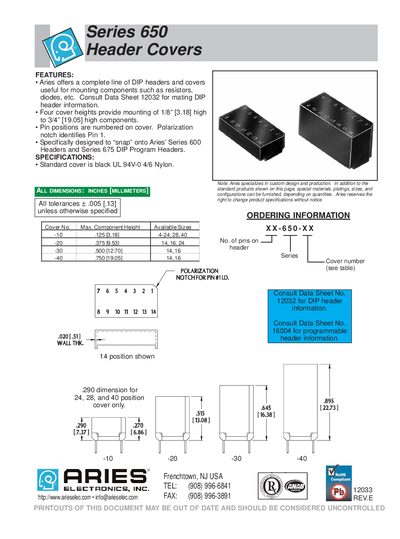

This document is a Data Sheet for Aries Series 650 Header Covers. Aries Series 650 Header Covers is a black UL 94V-0 4/6 Nylon dust cover, suitable for Aries’ Series 600 Headers and Series 675 DIP Program Headers. The product has 4 heights, 0.125 inches, 0.375 inches, 0.500 inches and 0.750 inches, which can be used to mount components from 1/8 inches to 3/4 inches high.
The guide describes Aries' Series 650 header covers, which snap onto Series 600 and Series 675 DIP program headers. Four cover heights are available, supporting component heights from 1/8" (3.18 mm) up to 3/4" (19.05 mm). Pin positions are numbered on each cover and a polarization notch identifies Pin 1.
Covers are made of black UL 94V‑0 4/6 nylon with a dimensional tolerance of +0.005" (+0.13 mm). Ordering information, including cover numbers, maximum component height, and available pin counts, is provided in the table. For detailed header compatibility, consult Data Sheet 12032.
| Cover material | black UL 94V-0 4/6 Nylon |
|---|---|
| Cover height range | 1/8" (3.18 mm) to 3/4" (19.05 mm) |
| Dimensional tolerance | +0.005" (+0.13 mm) |
| Pin identification | Numbered pins with a polarization notch for Pin 1 |
They are made of black UL 94V‑0 4/6 nylon.
The covers support component heights from 1/8" (3.18 mm) up to 3/4" (19.05 mm).
Pin positions are numbered on the cover and a polarization notch marks Pin 1.
