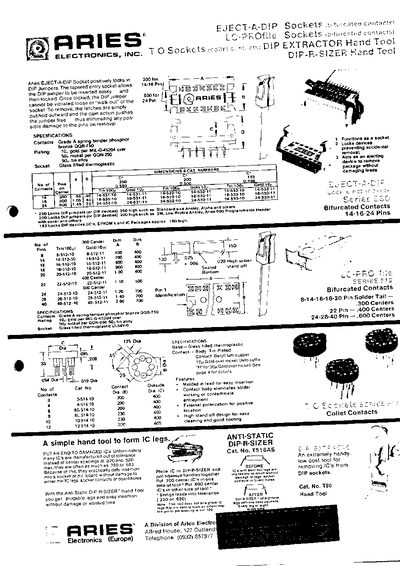

The Aries EJECT‑A‑DIP Socket is a hand‑tool designed to positively lock OIP jumpers in a tapered entry socket. Once locked, the cam action prevents vibration and allows safe ejection of the DIP device without harming the pins or the board.
The tool is built from glass‑filled thermoplastic with tin‑plated contacts and offers options for 14‑24 pins, supporting up to 250 DIP devices. Specifications include Grade A phosphor‑bronze contacts, gold‑over‑nickel plating, and a low‑profile design for easy insertion and removal.
| Contact material | Grade A spring temper phosphor bronze OOB‑750 |
|---|---|
| Body material | Glass filled thermoplastic |
| Contact plating | Tin plated, gold over nickel |
| Pin count options | 14‑24 pins, up to 250 devices |
| Function | Acts as an ejecting device |
It locks the jumper and uses a cam‑action ejecting device that removes the package without damaging the leads.
The socket body is made of glass‑filled thermoplastic.
It can lock up to 250 DIP jumpers.
