This product is a zero insertion force socket, which can be inserted or removed without any force, and all pins can be contacted through test point holes.

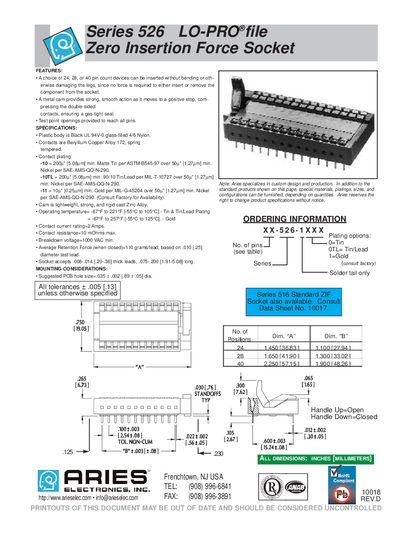

The Series 526 LO-PRO Zero Insertion Force (ZIF) socket lets 24, 28 or 40‑pin components be inserted and removed without any force, preventing leg damage. A metal cam gives smooth, positive‑stop motion that compresses double‑sided contacts for a gas‑tight seal, and test point openings allow access to all pins.
The socket features a black UL 94‑0 glass‑filled nylon body, beryllium‑copper alloy contacts, and a lightweight zinc‑alloy cam. It supports Tin, Tin/Lead, Matte Tin and Gold plating, operates from –67°F to 221°F (–55°C to 105°C) for tin finishes, and offers a 2 A contact current rating, 10 mΩ max resistance, 1000 VAC breakdown voltage, and 110 g retention force when closed. Recommended PCB hole size is .035 in + .002 in.
| Pin count options | 24, 28, or 40 pins |
|---|---|
| Operating temperature (Tin plating) | -67°F to 221°F (-55°C to 105°C) |
| Contact current rating | 2 Amps |
| Contact resistance | 10 mΩ max |
| Breakdown voltage | 1000 VAC min |
| Average retention force (closed) | 110 grams/lead |
| Recommended PCB hole size | .035 in + .002 in |
| Contact material | Beryllium Copper Alloy 172, spring tempered |
The socket is rated for a contact current of 2 Amps.
A PCB hole size of .035 in + .002 in is recommended.
