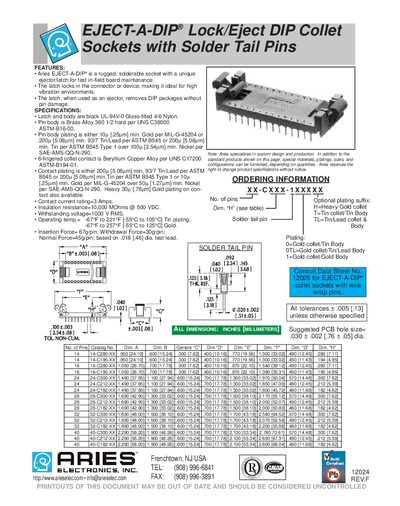

Aries EJECT-A-DIP® is a rugged, solderable socket with a unique ejector/latch for fast in-field board maintenance.
The EJECT-A-DIP® lock/eject DIP collet sockets are rugged, solder‑able components designed for fast in‑field board maintenance and high‑vibration environments. The latch can lock the connector in place or act as an ejector to remove DIP packages without damaging pins.
The document provides material descriptions, electrical ratings, plating options, mechanical forces, and ordering details such as catalog numbers and optional plating suffixes.
| Latch and body material | Black UL-94V-0 Glass-filled 4/6 Nylon |
|---|---|
| Pin body material | Brass Alloy 360 1/2 hard (UNS C36000) |
| Contact material | Beryllium Copper Alloy (UNS C17200) |
| Contact current rating | 3 A |
| Insulation resistance | 10,000 MΩ at 500 VDC |
| Withstanding voltage | 1000 V RMS |
| Operating temperature range | -67 °F to 257 °F (Gold plating) / -67 °F to 221 °F (Tin plating) |
| Insertion force | 67 g per pin |
| Withdrawal force | 30 g per pin |
| Normal force | 45 g per pin |
The contact current rating is 3 amps.
It offers an insulation resistance of 10,000 MΩ at 500 VDC.
The socket operates from –67 °F to 221 °F with tin plating and –67 °F to 257 °F with gold plating.
