The product is Aries 536 PLCC Test & Burn-in Zero Insertion Force Sockets, made of black UL 94V-0 Glass-filled Polyphenylene Sulfide (PPS). The rated current is 1 amp, the contact resistance is max 30 mOhms, the insulation resistance is min 1000 MOhms, the dielectric strength is 700 VAC for 1 minute, the self inductance is max 8.9 ηH, the operating temperature is -67°F to 338°F, the life cycle is 10,000 insertions.

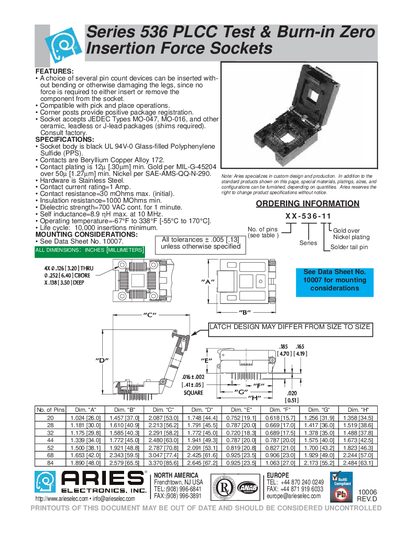

The Series 536 socket provides zero‑insertion‑force operation for PLCC devices, allowing insertion and removal without bending leads. It is compatible with pick‑and‑place equipment and includes corner posts for positive package registration.
The data sheet lists electrical specifications such as contact current rating, insulation resistance, and dielectric strength, as well as mechanical dimensions for various pin counts and mounting considerations.
| Body material | black UL 94V-0 Glass-filled Polyphenylene Sulfide (PPS) |
|---|---|
| Contact material | Beryllium Copper Alloy 172 |
| Contact plating | 1211 µin min. Gold, 50 µin min. Nickel |
| Contact current rating | 1 Amp |
| Contact resistance | 30 mΩ max (initial) |
| Insulation resistance | 1000 MΩ min |
| Dielectric strength | 700 VAC for 1 min |
| Self inductance | 8.9 nH max at 10 MHz |
| Operating temperature | -67 °F to 338 °F (‑55 °C to 170 °C) |
| Life cycle | 10,000 insertions minimum |
The socket is rated for a contact current of 1 Amp.
The insulation resistance is at least 1000 MΩ.
It operates from –67 °F to 338 °F (‑55 °C to 170 °C).
The socket is rated for a minimum of 10,000 insertions.
