This product is DIP to SOIC Adapters, which can be conveniently and cost-effectively converted from DIP style packaging to SOIC PC board layouts.
The Series 354000 adapters provide a convenient, cost‑effective way to convert DIP style packages to SOIC PCB layouts. Aries offers custom options for materials, plating, sizes and configurations based on order quantity.

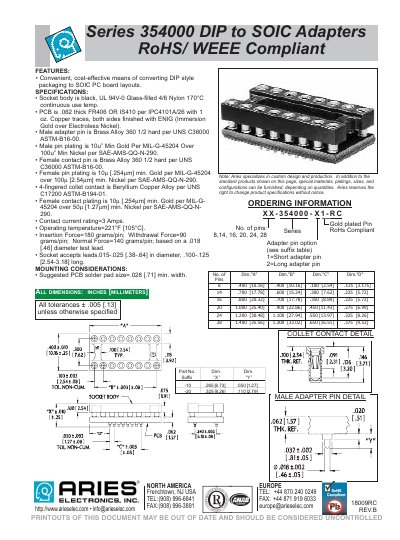

The sheet lists electrical and mechanical specifications such as socket material, pin plating, current rating, insertion force and recommended PCB solder pad dimensions, along with mounting considerations and ordering information.
| Socket body material | Black UL 94V‑0 glass‑filled 4/6 nylon |
|---|---|
| Operating temperature | 221 °F (105 °C) |
| Contact current rating | 3 Amps |
| Insertion force per pin | 180 g (insertion), 90 g (withdrawal), 140 g (normal) |
| Recommended PCB solder pad width | Minimum 0.028 in (0.71 mm) |
The adapter is rated for a contact current of 3 Amps.
It can operate up to 221 °F (105 °C).
A minimum pad width of 0.028 in (0.71 mm) is suggested.
The male adapter pin is made of Brass Alloy 360 1/2 hard.
