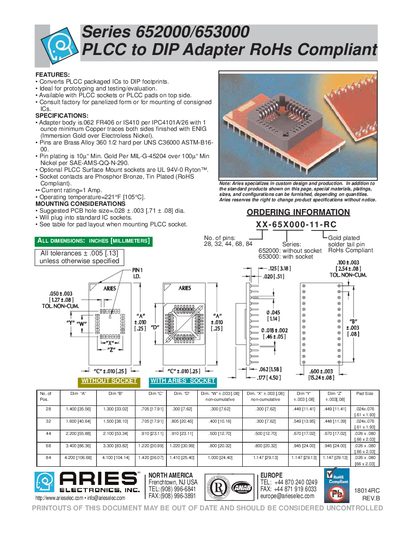

This product is Aries's 652000/653000 PLCC to DIP adapter, which converts PLCC packaged ICs to DIP footprints. It is ideal for prototyping and testing/evaluation. The product is available in two versions, with PLCC sockets or PLCC pads on the top side.
The Aries 652000/653000 PLCC to DIP Adapter provides a convenient way to convert PLCC packaged integrated circuits to standard DIP footprints for prototyping, testing, and evaluation. It is offered with either PLCC sockets or PLCC pads on the top side, and optional surface‑mount sockets are UL 94V‑0 Ryton™ compliant.
The adapter body is made from FR406 or IS410 material with 1 oz copper traces finished with ENIG plating. Pins are Brass Alloy 360 1/2 hard (UNS C36000) with 10 µm gold over 100 µm nickel plating. It is rated for 1 A current and operates up to 221 °F (105 °C). Suggested PCB hole size is .028 in + .003 in, and detailed dimensions are provided for 28, 32, 44, 68, and 84‑pin versions.
| Adapter body material | FR406 or IS410 per IPC4101A/26 |
|---|---|
| Copper trace thickness | 1 oz minimum, both sides, ENIG finish |
| Pin material | Brass Alloy 360 1/2 hard (UNS C36000) |
| Pin plating | 10 µm gold over 100 µm nickel |
| Socket contacts | Phosphor Bronze, Tin Plated (RoHS compliant) |
| Current rating | 1 A |
| Operating temperature | 221 °F (105 °C) |
| Suggested PCB hole size | .028 in + .003 in |
| Pin count options | 28, 32, 44, 68, 84 |
The adapter is rated for a maximum current of 1 Amp.
Yes, the adapter and its socket contacts are RoHS compliant.
It can operate up to 221 °F (105 °C).
