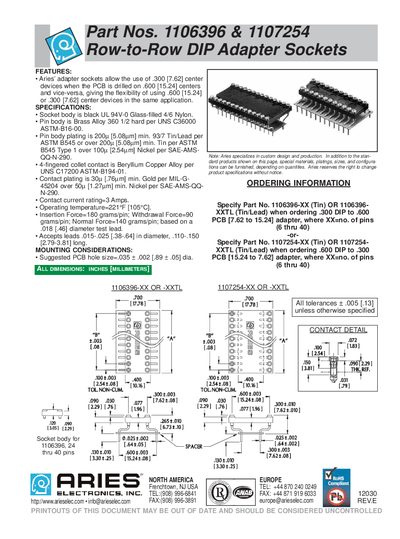

Aries' Row-to-Row DIP Adapter Sockets allow the use of .300 [7.62] center devices when the PCB is drilled on .600 [15.24] centers and vice-versa, giving the flexibility of using .600 [15.24] or .300 [7.62] center devices in the same application.
The Aries row‑to‑row DIP adapter sockets provide flexibility for PCB designs by allowing .300 mm pitch devices to be used on .600 mm drilled boards and vice‑versa. Two part numbers are offered, 1106396 and 1107254, each available with tin or tin/lead plating options.
The sockets feature a black UL‑94V‑0 glass‑filled nylon body, brass alloy pins, and optional gold, nickel, or tin/lead plating. They are rated for 3 A contact current, operate up to 221 °F (105 °C), and have defined insertion, withdrawal, and normal forces. Detailed mechanical dimensions and mounting recommendations are provided for 6‑to‑40‑pin configurations.
| Socket body material | black UL 94V-0 Glass-filled 4/6 Nylon |
|---|---|
| Pin body material | Brass Alloy 360 1/2 hard (UNS C36000) |
| Contact current rating | 3 Amps |
| Operating temperature | 221 °F (105 °C) |
| Insertion force per pin | 180 g |
| Suggested PCB hole size | 0.035 in + 0.002 in |
| Lead diameter acceptance | 0.015‑0.025 in |
The sockets are rated for a contact current of 3 Amps.
They can operate up to 221 °F (105 °C).
The socket body is made of black UL‑94V‑0 glass‑filled 4/6 nylon.
The recommended insertion force is 180 grams per pin.
